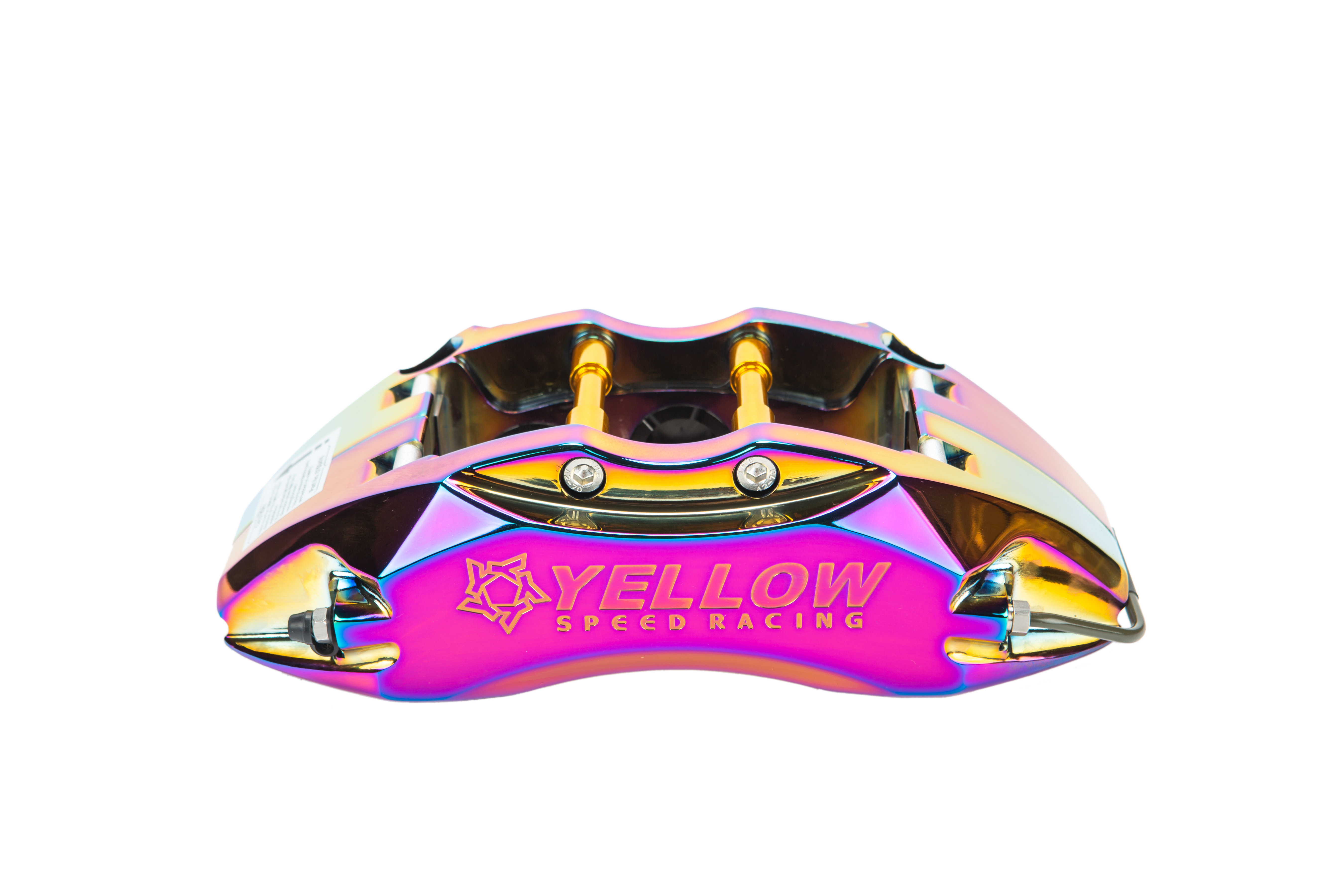

FORGED CALIPER
The caliper is made from lightweight alloy aluminum for weight reduction and optimal strength. The caliper utilizes piston dust/dirt and oil-leaking resistance seals, and is covered with anti-rust coating available in many colors listed below. The narrow shape is specifically developed for a large range of vehicles. More Colors.
  • Material : Lightweight Aluminum Alloy
  • Production Methods : Forged
  • Surface Finishing : Anodized or Painted Powder Coating Treatment
color

In order to make the caliper match your vehicle color, we strive to offer as many standard caliper colors as possible for our customers without any additional charge; however, the lead time to get the calipers painted or anodized will take us about 7 – 10 business days to process. If the purchased caliper is in the stock, the delivery time will be about 2 or 3 business days. Please check the product availability before placing an order with us. The actual caliper colors may be slightly different than the ones shown here so YELLOWSPEED will deny any product return with color difference issue.

If the color you are looking for is not listed here, please contact us for more info and color availability.
make your big brake system uniqe and outstanding

YELLOWSPEED not only offer many caliper colors for our customers but provide ‘labling program’ by engraving your name on the caliper as identification, which makes your big brake system uniqe and outstanding from others. This ‘labling program’ is provided to our customers in anodized colors ONLY (not available in painted colors) with the font of the letter present in ‘ARIAL BLACK’ only. The lead time to complete this labeling program will take us about 7 – 10 business days.

Width : 8cm, Height : 1cm

This is the area where your name is engraved (width: 8cm, height: 1cm), the font of the letter present is ‘ARIAL BLACK’ only. Please note the size of the labeling name may be altered depending on the length of your name. YELLOWSPEED will deny any product return with labeling size issue.

MODEL PISTON PISTON DIAMETER WEIGHT CALIPER DIMENSION
YSCPF4a Front 4-Piston Ø38mm, Ø38mm 4.3kg/pair 248mm (W) x 75mm (H)
YSCPF6a Front 6-Piston Ø36mm, Ø34mm, Ø30mm 4.3kg/pair 248mm (W) x 74mm (H)
YSCPF6b Front 6-Piston Ø38mm, Ø36mm, Ø32mm 7.0kg/pair 293mm (W) x 81mm (H)
YSCPF6c Front 6-Piston Ø36mm, Ø34mm, Ø30mm 5.7kg/pair 276mm (W) x 77mm (H)
YSCPF6d Front 6-Piston Ø36mm, Ø32mm, Ø28mm 250mm (W) x 72mm (H)
YSCPF6e Front 6-Piston Ø36mm, Ø34mm, Ø30mm 265mm (W) x 75mm (H)
YSCPF8a Front 8-Piston Ø36mm, Ø30mm, Ø28mm, Ø28mm 7.0kg/pair 293mm (W) x 81mm (H)
YSCPF8b Front 8-Piston Ø36mm, Ø32mm, Ø30mm, Ø28mm 9.1kg/pair 354mm (W) x 97mm (H)
YSCPR4a Rear 4-Piston Ø32mm, Ø28mm 4.3kg/pair 244mm (W) x 69mm (H)
YSCPR4b Rear 4-Piston Ø28mm, Ø28mm 4.3kg/pair 238mm (W) x 68mm (H)
YSCPR6a Rear 6-Piston Ø28mm, Ø25mm, Ø22mm 4.3kg/pair 244mm (W) x 70mm (H)
YSCPR6b Rear 6-Piston Ø32mm, Ø28mm, Ø25mm 5.7kg/pair 262mm (W) x 76mm (H)
